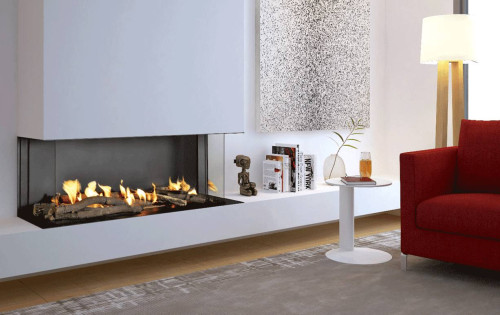

Double Corner Fireplaces can reach from one side of an architectural element to another. The multiple viewing angles and glass-to-glass paneling allow a clear line-of-sight to the flame with unit lengths of 30″ to 100″. This bay style Double Corner fireplace creates the perfect setting for any home or business.
Features
| Model Name | Burner Type | BTU/H Max | Input Max (KW) | BTU/H Min | Efficiency |
|---|---|---|---|---|---|
| Flare-25 | A | 30690 | 9 | 17500 | 80% |
| Flare-30 | B | 34782 | 10.2 | 18500 | 83% |
| Flare-45 | C | 42966 | 12.6 | 22000 | 81% |
| Flare-50 | D | 46035 | 13.5 | 22750 | 79% |
| Flare-60 | E | 52173 | 15.3 | 28000 | 82% |
| Flare-70 | F | 55583 | 16.3 | 28000 | 80% |
| Flare-80 | G | 57629 | 16.9 | 31000 | 82% |
| Flare-100 | H | 65813 | 19.3 | 32500 | 81% |
| Model Name | Burner Type | BTU/H Max | BTU Max (KW) | BTU Min | Efficiency |
|---|---|---|---|---|---|
| Flare-25 | A | 24893 | 7300 | 12500 | 77% |
| Flare-30 | B | 26257 | 7700 | 1600 | 81% |
| Flare-45 | C | 26257 | 7700 | 17750 | 82% |
| Flare-50 | D | 40920 | 10.3 | 18500 | 82% |
| Flare-60 | E | 42966 | 12 | 20000 | 80% |
| Flare-70 | F | 42966 | 12.6 | 20000 | 79% |
| Flare-80 | G | 46376 | 13.6 | 20750 | 75% |
| Flare-100 | H | 51150 | 15 | 25500 | 76% |
